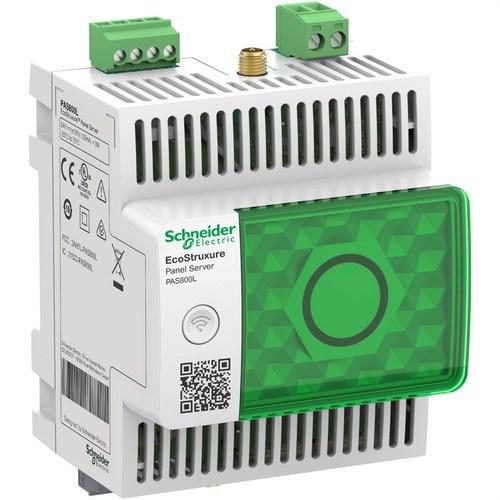

EcoStruxure Panel Server Advanced data logger, wireless hub, and Modbus gateway at 24V DC

Technical Description

EcoStruxure Panel Server Advanced is a Schneider Electric gateway and data logger for electrical panel digitalization. It aggregates data from wired and wireless devices and makes it available to energy monitoring systems.

Applications and Benefits

It facilitates remote panel monitoring, consumption tracking, and the integration of meters, communicating protection devices, and sensors into energy management architectures.

Technical Features

• Main function: data logger, wireless concentrator, and communication gateway.
• Power supply: 24 V DC.
• Modbus communication for integrating electrical devices and metering equipment.
• Gateway between Modbus networks and EcoStruxure digital services.
• Allows energy data to be collected, logged, and visualized for analysis, maintenance, and consumption optimization.
• Designed for electrical distribution panels in commercial buildings, tertiary sector, and industry.

Installation

It must be installed and configured according to the panel communication architecture, verifying power supply, Modbus addressing, and compatibility of the associated devices.
