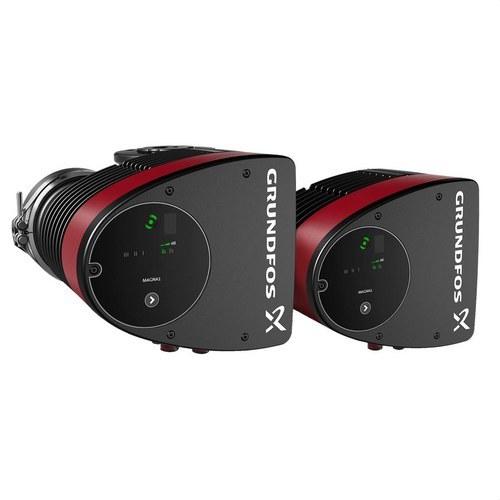

Grundfos MAGNA1 D 40-150 F Circulating Pump

The Grundfos MAGNA1 D 40-150 F circulator pump is an efficient and versatile solution designed for heating and air conditioning applications in both commercial and domestic buildings. With its robust design and advanced features, this pump is ideal for enhancing HVAC system capacity and simplifying installation. The Grundfos MAGNA1 D 40-150 F stands out by incorporating functions such as redundancy and alternation between the two heads, ensuring continuous and optimised operation without interruptions.

Thanks to its wireless communication between heads, this circulator pump allows for greater flexibility and control in system management, resulting in increased operational efficiency. The pump's design also allows for easy integration into existing systems, facilitating upgrades and performance improvements without significant structural changes.

Technical Specifications:

• Maximum Head: 150 dm (15 m), ensuring adequate pressure throughout the system, guaranteeing efficient performance in large heating and air conditioning installations.
• TF Class: 110, ensuring its operation in systems with high fluid temperatures.
• Approvals: CE, VDE, EAC, MOROCCO, UKCA, TSE, RCM, UkrSEPRO, ensuring compliance with quality and safety standards in various international markets.

Materials:

The Grundfos MAGNA1 D 40-150 F is manufactured with high-quality materials that ensure its durability and resistance in demanding conditions. The pump's hydraulic body is made of EN-GJL-250 ASTM A48-250B cast iron, while the impeller is made of composite, providing excellent corrosion and wear resistance, extending the pump's lifespan.

• Hydraulic Body: EN-GJL-250 ASTM A48-250B cast iron.
• Impeller: Composite, for greater durability and efficiency.

Installation:

This circulator pump is suitable for operation in ambient temperatures ranging from 0 to 40 °C, making it suitable for a wide variety of environments. Additionally, the pump supports a maximum working pressure of 10 bar, ensuring its performance in high-pressure systems. Its DIN-type connection and a connection size of DN 40 facilitate installation and adaptation to various systems.

• Connection Size: DN 40.
• Nominal Connection Pressure: PN 6/10.
• Port-to-Port Length: 250 mm, making it a compact and easy-to-install option in existing systems.

Pumped Liquid:

The Grundfos MAGNA1 D 40-150 F is designed to pump water with a temperature range of -10 °C to 110 °C, making it extremely versatile for handling both cold and hot water in HVAC systems. The usual operating temperature of the liquid is 60 °C, ensuring efficient hot water circulation in heating systems.

• Liquid Temperature Range: -10 °C to 110 °C.
• Operating Temperature: 60 °C.
• Density of Pumped Liquid: 983.2 kg/m³.

Electrical Data:

The pump has a maximum input power of 630 W, providing excellent energy performance for its size and capacity. Additionally, the pump has a minimum energy consumption of 16.93 W, ensuring efficient operation even under light loads. Its nominal voltage is 1 x 230 V and it can operate at both 50 Hz and 60 Hz frequencies, ensuring compatibility with a wide range of electrical networks.

• Maximum Input Power (P1): 630 W.
• Minimum P1: 16.93 W, for efficient operation under low demand conditions.
• Nominal Voltage: 1 x 230 V.
• Network Frequency: 50 / 60 Hz.
• Maximum Current Consumption: 2.77 A.
• Minimum Consumption: 0.18 A.
• Protection Grade: IP X4D, making it resistant to water and dust ingress under normal operating conditions.
• Insulation Class: Class F, suitable for moderate operating temperatures.

Other Details:

The Grundfos MAGNA1 D 40-150 F has an excellent energy efficiency index (EEI) of 0.21, ensuring efficient energy consumption and a low environmental impact. With a net weight of 31.6 kg and a gross weight of 35.5 kg, this pump is robust enough to ensure a long service life, yet manageable to facilitate installation and transport.

• Net Weight: 31.6 kg.
• Gross Weight: 35.5 kg.
• Transport Volume: 0.087 m³, ensuring easy handling and storage during transport.

Environmental Compliance:

The pump complies with important environmental regulations, such as CN ROHS and WEEE, highlighting its sustainable and environmentally friendly design, aligned with international standards.
