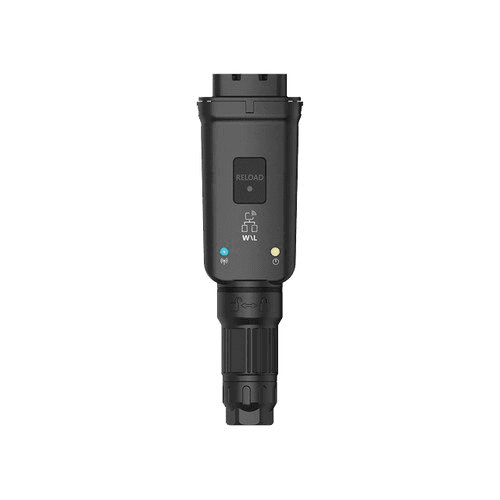

GoodWe WiFi/LAN Communication Kit Kit-20

The GoodWe WiFi/LAN Kit-20 is a communication module designed to integrate GoodWe inverters into energy monitoring and management systems. This device enables connection via both WiFi and LAN (Ethernet), providing flexibility for residential or commercial installations where connectivity may vary.

Thanks to its local configuration system via Bluetooth, installers can quickly and easily commission the device directly from their mobile device, without needing prior internet access. Once connected, the system allows data transmission to monitoring platforms to supervise the photovoltaic system’s performance in real time.

Stable Communication and Secure Data Transmission

The kit features advanced functions that enhance communication stability between the inverter and the network. Among these is the breakpoint retransmission function, which reduces the risk of data loss and ensures reliable transmission even on unstable networks.

Additionally, the system is designed to meet current cybersecurity requirements, ensuring the protection of data transmitted between the inverter and remote monitoring systems.

Quick Plug & Play Installation

The module connects directly to the inverter via a USB interface and offers Plug & Play installation, simplifying the setup process and reducing commissioning time. Its LED indicators allow for quick verification of operating status and network connection.

Its compact and robust design, with IP65 protection rating, allows for outdoor installation alongside the inverter, ensuring reliable operation even in demanding environmental conditions.

Main Features

• Dual connectivity: WiFi and Ethernet for greater installation flexibility
• Local configuration via Bluetooth for easy commissioning
• Stable data transmission with automatic retransmission function
• Compatible with remote monitoring of GoodWe inverters
• Quick Plug & Play installation via USB connection
• IP65 protection for outdoor installation
• LED indicators for communication and operating status

Technical Specifications

• Model: WiFi/LAN Kit-20
• Maximum number of connected devices: 1
• Connection interface: USB
• Input voltage: 5 V
• Power consumption: ≤ 3 W
• Ethernet interface: 10 / 100 Mbps auto-adaptive
• WiFi: IEEE 802.11 b/g/n @ 2.4 GHz
• Maximum WiFi transmission power: < 20 dBm
• WiFi bandwidth: 20 / 40 MHz
• WiFi operating mode: STA
• Bluetooth: version 4.2
• Indicators: 2 LEDs
• Installation: Plug & Play

Mechanical Features

• Dimensions (width × height × depth): 48.3 × 159.5 × 32.1 mm
• Weight: 82 g
• Protection rating: IP65

Operating Conditions

• Operating temperature: -30 °C to +60 °C
• Storage temperature: -40 °C to +70 °C
• Relative humidity: 0 – 95 %
• Maximum operating altitude: 4000 m
